VON Dr. Wolf SiegertZUM Mittwoch Letzte Bearbeitung: 16. November 2021 um 00 Uhr 43 Minutenzum Post-Scriptum

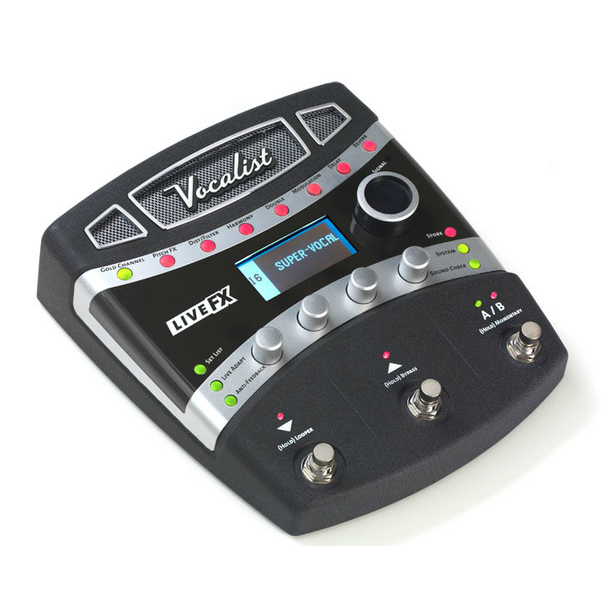

Dieses Gerät [1] ...

... wird nicht mehr produziert, wurde aber ’einst’ so vorgestellt:

aber dennoch auch in aktuellen Beiträgen mit erwähnt wird:

P.S.

General Specifications:

Microphone Input Female XLR Pin 2 Hot
Input Impedance 3kΩ balanced
Phantom Power +48 Volts
EIN -125 dBu @ 60 dB gain typical (150Ω source); -128 dBu @ 60 dB gain typical A-weighted (150Ω source)
Microphone Input - Maximum Input Level +18 dBu at minimum gain
Aux Input Connector 1/8” mini stereo jack
Aux Input - Maximum Input Level +20 dBu
Line Outputs XLR electronically balanced
Line Outputs - Maximum Output Level +5 dBu @ 0dBFS
Impedance 1kΩ
Headphone/Line Output 1/4” stereo jack, 50Ω output impedance
Dynamic Range 109 dB typical, 22 Hz – 22 kHz, A-weighted
Frequency Response +0/-2.5 dB, 20 Hz – 20 kHz
THD+Noise <0.009%,>

Anmerkungen

[1

The Vocalist Live FX is our next generation vocal effect processor with studio quality vocal effects and new Live Adapt™ listening technology. When you’re on stage you need the same high performance and superior audio quality you’re accustomed to from the studio. The new Vocalist Live FX puts professional studio grade vocal effect processing at your feet on stage. Licensed Lexicon® reverb, dbx® compression, and Automatic Feedback Supression give you powerful tools to make every vocal performance powerful captivative, and engaging to your audience. During the performance, the new Live Adapt feature can automatically detect your song’s tempo, key, and scale to automatically adjust for the best vocal sound. The Gold Channel allows you to engage the channel strip with the press of a button so you can sound good in an instant. The Anti-Feedback button automatically sets filters to eliminate feedback and help ensure you’re not caught holding the mic while feedback decimates the audience.
